This Covers TI-85 and TI-86 BASIC

abs arg1

    Returns absolute value of a real number.


arc(arg1,arg2,arg3,arg4) Returns the length along function.
Circl(arg1,arg2,arg3) Draws a circle with center(arg1,arg2) and radius arg3 arg1 = x value of center arg2 = y value of center arg3 = radius
ClDrw Instruction to clear drawing.
ClLCD Instruction to clear the display
Disp instruction to display text, a value, or the home screen Example 1: :Disp "HELLO" Example 2: :Disp x
DispG No arguments. Instruction to display the current graph
DrawDot No arguments Set dot graphing format.
Drawline No arguments set connected line graphing format.
DS<(arg1,arg2) decrement variable arg1 by 1, skip next command
End Used with If/Then and For to terminate.
Else Works with the If statement.
For For statement creates a value checked step type loop Use with End statement for end of loop. Example: :For(N,3,order,1) ..... :End

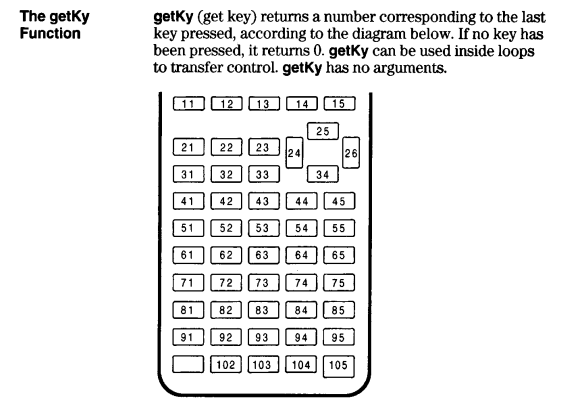

getKy Instruction to check the keyboard for a keystroke
Goto Use with Lbl (label) to point code flow.
If If statement performs a check Example: :If order=3 :Input "CENTER: ",cen Example 2: :If order=3 :Then :abs f0->gmax:gmax->bmi :End
InpSt Instruction to enter and store a string during execution
Input Instruction to enter and store values during execution.
IS>(
Lbl A place marker for th Goto statement to send code flow.
Menu
Outpt instruction to display text at a specified position on the display and to communicate with CBL
Pause No arguments Suspend execution until ENTER is pressed.
Prompt Instruction to prompt for entry of values for one or more variables
PrtScrn Instruction to print the current screen on a printer connected to an IBM-compatible or Macintosh computer
PtOn() Draw point at x and y
rand Creates a random number greater than zero and smaler than 1.
randM(arg1,arg2) Create a random integer between to numbers.
Repeat
Return Execute loop until condition is true. Use End for end of loop.
Stop Tells the code to stop running
Then words with the If stantement
While Creates a while loop that uses the End statment to close the loop.
